Tempico: time-to-digital converter

Tausand Tempico TP1004 time-to-digital converter, released in 2025.

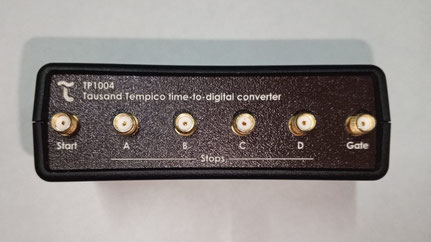

Tausand Tempico TP1004 front view
Tausand Tempico TP1004

This is a family of time-to-digital converters (TDCs), ideal to measure time differences between electrical pulses in particle detection, microscopy, and quantum optics experiments.



Tausand Tempico TP1004 has a common start input, 4 independent stop inputs, and an optional gate input. It measures the elapsed time between the start and each of the stops, with a resolution of 56ps. Start-stop times may be in the range from 12ns to 4ms.



Some of its adjustable settings are:

  • input voltage threshold from 0.9V to 1.6V.
  • Multi-cycle averaging, from 1 to 128 averaging cycles.
  • Multiple stops on the same input: 1 to 5.
  • Measures on rising or falling edges.

Inputs use SMA connectors coupled at 50 ohm, accepting digital signals with high-levels from 1.0V up to 5V.

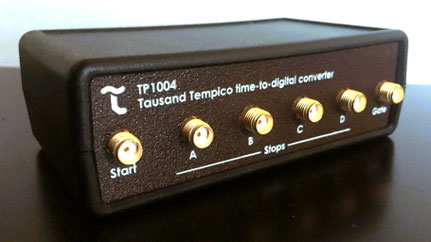

Tausand Tempico TP1004 TDC
Tausand Tempico TP1004 TDC: 1 common start, 4 independent stops, 1 gating.
Tausand Tempico TP1004 TDC rear panel
Tausand Tempico TP1004 TDC rear panel: USB port.

You may request a formal quote writing to sales@tausand.com, or filling the contact form.


Download
Brochure for Tausand Tempico TP1004
4 Channel time-to-digital converters: main features and specifications
TP1000 brochure v1.2.pdf
Adobe Acrobat Document 222.6 KB

Looking for Tempico software, libraries or its user manual? Go to our downloads section.

Would you be interested in an alternative version? Let us know: support@tausand.com
