Single counts and two-fold coincidence detection.

2 BNC inputs on rear. Reads standard LVTTL input pulses.

12V DC power supply required.

On/off switch. Screen, buttons and knob for stand-alone operation.

Mini USB port on rear panel.

Sampling time: from 1ms to 1000s.

Coincidence window: from 2ns to 100ns, 2ns resolution.

Delay: from 0ns to 100ns, 2ns resolution. Channel independent.

Afterpulse elimination: from 0ns to 100ns, 2ns resolution. Channel independent.

Software for data acquisition and configuration available.

Single counts, two-fold, three-fold and four-fold coincidence detection.

4 BNC inputs on rear. Reads standard LVTTL input pulses.

12V DC power supply required.

On/off switch. Screen, buttons and knob for stand-alone operation.

Mini USB port on rear panel.

Sampling time: from 1ms to 1000s.

Coincidence window: from 2ns to 10us, 2ns resolution.

Delay: from 0ns to 100ns, 2ns resolution. Channel independent.

Afterpulse elimination: from 0ns to 100ns, 2ns resolution. Channel independent.

Software for data acquisition and configuration available.

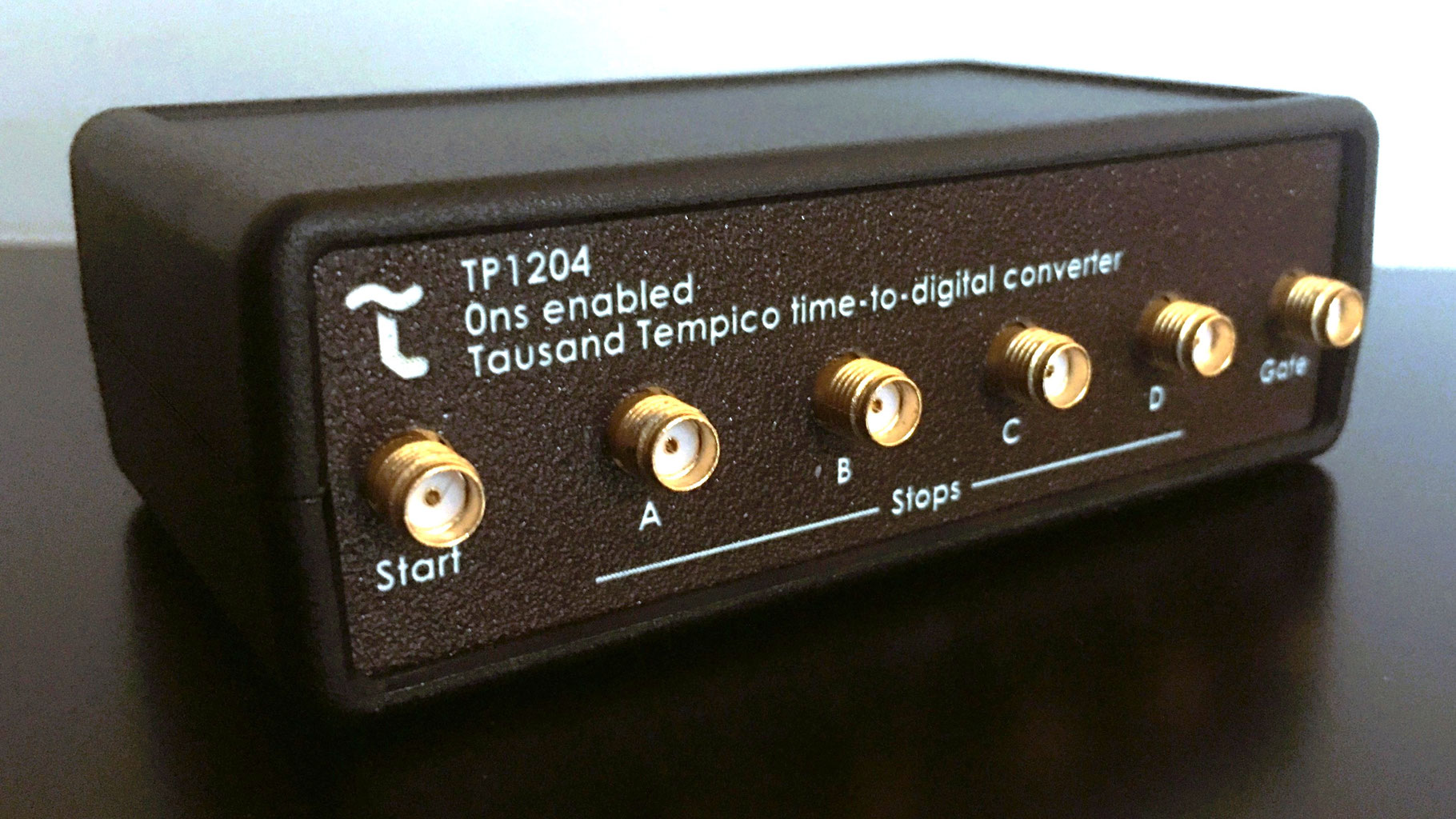

4 time-to-digital converters (TDCs): common start, 4 independent stop inputs.

Start-stop resolution of 56ps. Start-stop times from 12ns up to 4ms.

SMA inputs coupled at 50Ω. Read standard LVTTL, TTL, 2.5V, 3.3V and 5V pulses.

Optional gating input.

USB-C port for power supply and data transfer.

Adjustable settings: input voltage threshold, multi-cycle averaging, multi-stop per input from 1 to 5, rise or fall edge readings.

Software for data acquisition and configuration available.

Lightweight and small form factor.
